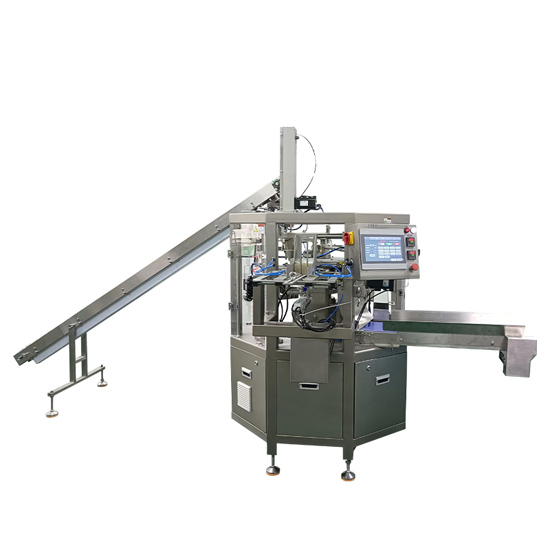

MD-210S premade bag rotary packing machine

Model:MD-210S premade bag tea outer bag packaging machine

Product Performance


  • Max.BPM : up to 65 bags/min

  • Bag type: three-side sealed, four-side sealed, premade bag

  • Bag material: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP ect.

  • Bag shape: normal bag shape or special-shaped custom premade bag

Contact
Description Parameters Features

Description of MD-210S premade bag rotary packing machine


MD-210S is a fully automatic outer bag packaging machine for pyramid tea bag packing, which is a special design for the tea and beverage industry by MDP Intelligent. This premade bag packing machine is also suitable for small bag packaging for granule.

The highest production efficiency of this premade bag tea outer bag packaging machine is 65 bags/min, the speed mainly depends on the composition, characteristics and weight of the product material. It is suitable for all kinds of laminated film.


Parameters of MD-210S premade bag rotary packing machine


ModelMD-210S
Packing speed40-65bags/min
Bag typethree-side sealed, four-side sealed, premade bag
Bag width80-210mm
Bag length80-280mm
Package bag materialPP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP ect.
Machine weight800kg
Air consumption0.4m³/min
Power supply7KW/380V/50HZ
Dimension3604mm*1700mm*2071mm



Features of MD-210S premade bag rotary packing machine


  • Machine operation is centrally controlled by (with motion function) programmable controller PLC, large screen touch screen, simple and convenient operation.

  • Supporting fault automatic tracking alarm system, and real-time display of operating conditions.

  • Empty bag tracking detection device, to realize the bag does not open without falling and sealing.

  • Action execution adopts a full servo control system, which is reliable, fast, and accurate.

  • The whole tea outer bag packing machine is designed under GMP standards and has passed CE certification.
