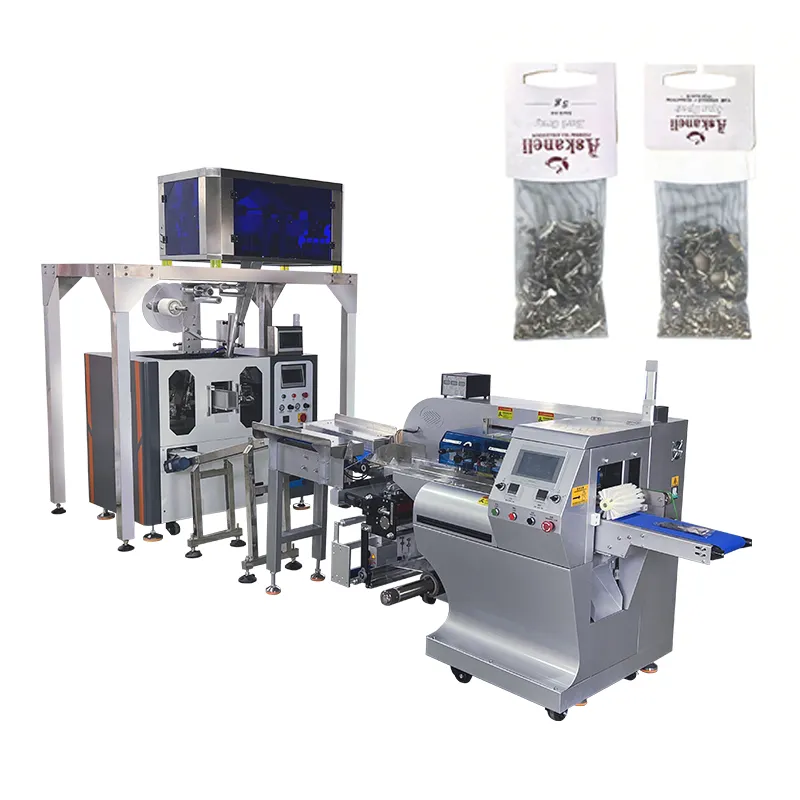

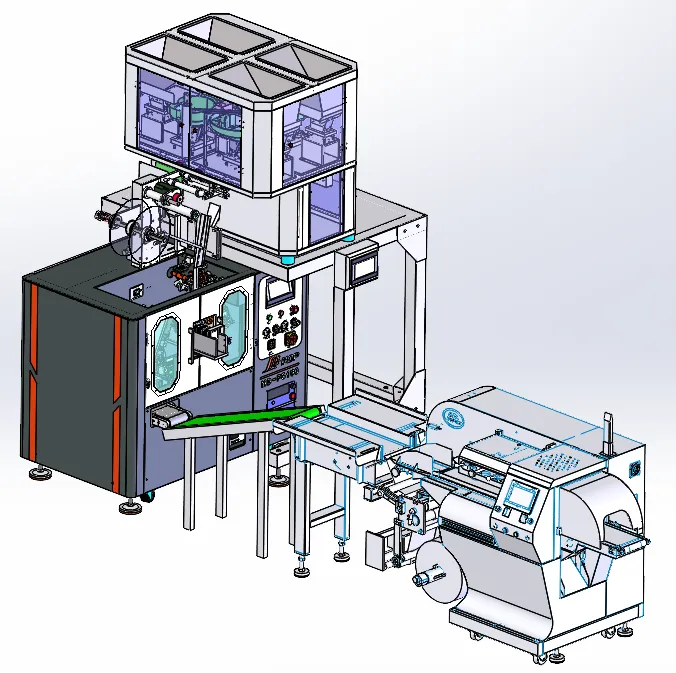

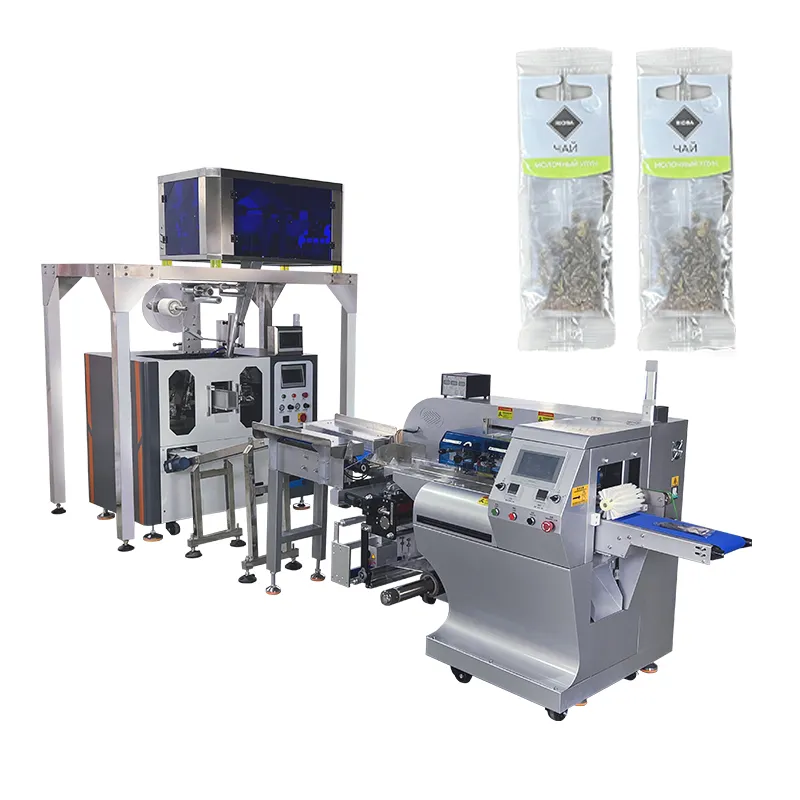

Model: Cup Hanging Tea Bag Packaging Machine MD-G12S
Product Performance
Packing Speed: 30 bags/min
Feeding Range: 5-8g
Feeding System: 1 electronic scale
Power Supply: 220V, 3.7kw
The MD-G12S is a fully automatic cup hanging tea bag packaging machine designed for both inner-bag and inner-plus-outer-bag applications.
It integrates weighing, filling, label hanging, and envelope packaging in one continuous process. Suitable for whole-leaf tea, flower tea, fruit tea, black tea, green tea, and herbs.
Reliable, high-efficiency production for specialty tea packaging.
| Model | MD-G12S Cup Hanging Tea Bag Packaging Machine |
| Capacity | 30 bag/min |
| Feeding Range | 5-8g |
| Tea Bag Film Width | 140 mm (finished bag size 50*140mm) |
| Envelope Film Width | 160 mm (finished bag size 70*200 mm) |
| Feeding System | 4-head weighers |
| Tea Bag | nylon, non-woven fabric |
| Tea Bag Sealing Method | ultrasonic sealing |
| Envelope Bag Type | pillow bag (back sealing) |
| Envelope Packing Material | Aluminized/BOPP/CPP/LDPE/kraft/OPP/PET/PA/PVC, etc. |
| Envelope Sealing Method | heat sealing |
| Film Thickness | around 0.05-0.08mm |
| Total Power | 3.7kw, 220V, single phase, 50/60Hz |
| Overall Sizes | 4700*2030* 2275 mm |
1.High-precision weighing: Equipped with an electronic scale system, ensuring accurate 5–8 g filling with minimal deviation for consistent product quality.
2.Versatile material handling: Suitable for whole-leaf tea, flower tea, fruit tea, and herbs; supports blending of multiple ingredients to meet diverse recipe requirements.
3.Intelligent control: PLC-based touchscreen interface with adjustable parameters, enabling user-friendly operation and real-time monitoring.
4.Integrated label & envelope packaging: Supports simultaneous hanging-tag attachment and outer-envelope sealing, streamlining the entire packaging process in one continuous operation.
5.Updated electronic spiral scales with 2 times filling system with detection sensors to avoid machine running with less or empty tea materials.
6.Full ultrasonic sealing for inner bags allow straight line cutting and avoid film wasting.
7.Workable film materials: Nylon, PLA biodegradable materials (corn fiber), PET, Non-woven fabrics or other ultrasonic sealing materials.
